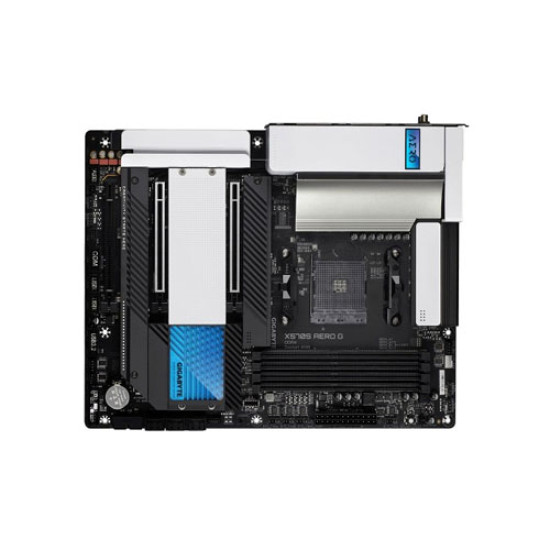

Name: Gigabyte X570S AERO G AMD ATX Motherboard
Brand: Gigabyte
Price: 36000.00 BDT
Availability: InStock

Gigabyte X570S AERO G AMD ATX Motherboard

Gigabyte X570S AERO G AMD ATX Motherboard

Key Feature

- Support Ryzen 5000, 4000 G, 3000, 3000 G, 2000, 2000 G series processors
- Dual-Channel DDR4 memory, 4 DIMMs
- VisionLINK I/O design and Wi-Fi 6 2x2 802.11ax
- 4 Ultra-Fast NVMe PCIe x4 M.2 connectors

View more details

Status: In Stock
Brand: Gigabyte
Model: X570S AERO G
MPN: smart

Based on 0 reviews. - Write a review

36,000৳

Ex Tax: 36,000৳

Qty

Add to Cart

Buy Now Call For Price

Add to Wish List Compare this Product

Memory Specifications
Type	Dual channel memory architecture
Slots	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM <br>capacity) of system memory
Supported Memory	AMD Ryzen 5000 Series processors:<br> Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/<br> 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / <br>4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) /<br> 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / <br>2933 / 2667 / 2400 / 2133 MHz memory modules<br> AMD Ryzen 4000 G-Series processors:<br> Support for DDR4 5400(O.C.)/ 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / <br>4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / <br>4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) /<br> 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / <br>2933 / 2667 / 2400 / 2133 MHz memory modules<br> AMD Ryzen 3000 Series processors:<br> Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ <br>4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / <br>3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / <br>3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / <br>2400 / 2133 MHz memory modules<br> AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 Series <br>Processors/ AMD Ryzen 2000 G-Series Processors:<br> Support for DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) <br>/ 3300(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz <br>memory moduleses<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 <br>memory modules<br> Support for Extreme Memory Profile (XMP) memory modules
Max. Memory	128 GB
Basic Information
Supported CPU	AMD Socket AM4, support for: AMD Ryzen 5000 Series Processors/ <br>Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series Processors/ <br>AMD Ryzen 3000 Series Processors/ AMD Ryzen 3000 G-Series <br>Processors/ AMD Ryzen 2000 Series Processors/ AMD Ryzen<br> 2000 G-Series Processors
Chipset	AMD X570
BIOS	1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek ALC1220-VB Audio CODEC<br> * The back panel line out jack supports DSD audio.<br> Support for DTS:X Ultra<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> Support for S/PDIF Out
Expansion Slots
PCI	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series <br>Processors support PCIe 4.0 x16 mode<br> AMD Ryzen 4000 G-Series Processors/AMD Ryzen 2000 Series <br>Processors support PCIe 3.0 x16 mode<br> AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 G-Series <br>Processors support PCIe 3.0 x8 mode<br> 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:<br> AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series <br>Processors support PCIe 4.0 x8 mode<br> AMD Ryzen 4000 G-Series Processors/AMD Ryzen 2000 Series <br>Processors support PCIe 3.0 x8 mode<br> AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 G-Series <br>Processors do not support this slot<br> * For optimum performance, if only one PCI Express graphics card <br>is to be installed, be sure to install it in the PCIEX16 slot.<br> * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When <br>the PCIEX8 slot is populated, the PCIEX16 slot operates at up <br>to x8 mode.<br> 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:<br> Supporting PCIe 4.0* /3.0 x4 mode<br> * For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series <br>Processors only.<br> * The PCIEX4 slot shares bandwidth with the M2C_SB connector. <br>The PCIEX4 slot becomes unavailable when a device is <br>installed in the M2C_SB connector.
M.2 Socket	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting <br>Socket 3, M key, type 2242/2280/22110 SSDs:<br> 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting <br>Socket 3, M key, type 2242/2280/22110 SSDs:<br> 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting <br>Socket 3, M key, type 2242/2280/22110 SSDs:<br> 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting <br>Socket 3, M key, type 2280/22110 SSDs:
Graphics
Graphics	Integrated Graphics Processor:<br> 1 x USB Type-C port, supporting USB Type-C and DisplayPort video <br>outputs and a maximum resolution of 4096x2304@60 Hz<br> * Support for drawing tablets and 20V@3A of power delivery.<br> * Support for DisplayPort 1.4 version and HDCP 2.3<br> 1 x HDMI port, supporting a maximum resolution of <br>4096x2160@60 Hz<br> * Support for HDMI 2.1 version, HDCP 2.3, and HDR.<br> Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire <br>technologies<br> * For AMD Ryzen 5000 Series Processors/AMD Ryzen 4000 <br>G-Series Processors/AMD Ryzen 3000 Series Processors/AMD Ryzen <br>2000 Series Processors only.
Max Shared Memory	16 GB
Connector & Ports
HDMI	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
USB (s)	CPU:<br> 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 <br>support<br> 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel<br> 2 x USB 3.2 Gen 1 ports on the back panel<br> Chipset+ASMedia USB 3.2 Gen 2x2 Controller:<br> 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 <br>support<br> Chipset:<br> 1 x USB Type-C port with USB 3.2 Gen 2 support, available through<br> the internal USB header<br> 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> 4 x USB 3.2 Gen 1 ports available through the internal USB <br>headers<br> Chipset+2 USB 2.0 Hubs: 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available <br>through the internal USB headers)
LAN Port (s)	Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting <br>Socket 3, M key, type 2242/2280/22110 SSDs:<br> AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series <br>Processors support SATA and PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series <br>Processors/ AMD Ryzen 2000 Series Processors/AMD Ryzen <br>2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 <br>SSDs<br> 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting <br>Socket 3, M key, type 2242/2280/22110 SSDs:<br> Supporting PCIe 4.0* /3.0 x4/x2 SSDs<br> * For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series <br>Processors only.<br> 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting <br>Socket 3, M key, type 2242/2280/22110 SSDs:<br> Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs<br> * For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series <br>Processors only.<br> 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting <br>Socket 3, M key, type 2280/22110 SSDs:<br> Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs<br> * For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series <br>Processors only.<br> 6 x SATA 6Gb/s connectors, integrated in the Chipset:<br> Support for RAID 0, RAID 1, and RAID 10<br> * Refer to "1-8 Internal Connectors," for the installation notices for <br>the M.2 and SATA connectors.
Audio	Internal: 1 x front panel audio header<br> Back Panel: 5 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x 4-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x water cooling CPU fan header<br> 4 x system fan headers<br> 2 x system fan/water cooling pump headers<br> 2 x addressable LED strip headers<br> 2 x RGB LED strip headers<br> 1 x CPU cooler LED strip/RGB LED strip header<br> 4 x M.2 Socket 3 connectors<br> 6 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C header, with USB 3.2 Gen 2 support<br> 2 x USB 3.2 Gen 1 headers<br> 2 x USB 2.0/1.1 headers<br> 1 x noise detection header<br> 1 x Trusted Platform Module (TPM) header (2x6 pin, for the <br>GC-TPM2.0_S module only)<br> 1 x Thunderbolt add-in card connector<br> 1 x serial port header<br> 1 x Clear CMOS jumper<br> 2 x temperature sensor headers<br> 1 x Q-Flash Plus button
Others Information
Special Features	Support for APP Center<br> * Available applications in APP Center may vary by motherboard <br>model. Supported functions of each application may also vary <br>depending on motherboard specifications.<br> @BIOS<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash Plus<br> Support for Q-Flash<br> Support for Xpress Install
Warranty Information
Manufacturing Warranty	03 years

Gigabyte X570S AERO G AMD ATX Motherboard

The Gigabyte X570S AERO G AMD ATX Motherboard is a powerful and feature-rich motherboard designed for enthusiasts and gamers seeking top-tier performance with AMD Ryzen processors. With its ATX form factor, measuring 30.5cm x 24.4cm, this motherboard offers a robust foundation for building high-performance desktop systems. Equipped with an AMD X570 chipset, the motherboard supports a variety of AMD processors, including Ryzen 5000 Series, Ryzen 4000 G-Series, Ryzen 3000 Series, Ryzen 3000 G-Series, Ryzen 2000 Series, and Ryzen 2000 G-Series processors. The dual-channel memory architecture accommodates up to four DDR4 DIMM sockets, supporting a maximum of 128 GB of system memory. The memory support is extensive, with overclocking capabilities for enhanced performance, catering to the needs of users who demand high-speed and responsive computing. Expansion slots on the motherboard include a PCI Express x16 slot (PCIEX16) supporting PCIe 4.0 x16 mode for Ryzen 5000 and 3000 series processors, and PCIe 3.0 x16 mode for Ryzen 4000 G-Series processors. Another PCI Express x16 slot (PCIEX8) operates at PCIe 4.0 x8 mode for Ryzen 5000 and 3000 series processors and PCIe 3.0 x8 mode for Ryzen 4000 G-Series processors. A PCI Express x16 slot (PCIEX4) integrated into the chipset supports PCIe 4.0/3.0 x4 mode, offering versatile options for graphics card configurations.
